Offering Outstanding Services For your Material Needs FPP offers highly advanced plastic resin compounding, sheet extrusion, and mDO film stretching capabilities, and can provide customer trials, material developments, and toll services to serve our customers' needs

Novel Toll Services To Meet Your Production Needs

We have extensive production capabilities, plastic material know-how and processing expertise to support your plastic material needs

A 60 mm twin screw compounding line with output rates in the range of 500 to 2000 lbs/hr. The compounding line also features two 3000 lbs dryers with independent control
A three-layer sheet co-extrusion line with the the ability to extrude sheets up to 48" in width, and a rate of up to 60 ft/min
A MDO stretching line with film width up to 45" wide and up to a 90 ft/min inlet speed

We can provide toll manufacturing services to customers and can also assist customers to fine tune the production process and optimize the material compositions to meet their unique applications.

Please contact us to learn more information about the toll services we provide to meet your needs

Customer Trials and technical Services

Customer Trial Services

27 mm Twin Screw Laboratory Compounding Line
Output rate: 50 - 250 lbs/hr
Up to four feeders and one side stuffer
60 mm Twin Screw Compounding Line
Output rate: 500 - 2000 lbs/hr
Up to 7 feeders and one side feeder
Sheet Co-extrusion Line
54" die and up to 60 ft/minute
Thickness 10 to 60 mils
Available co-extrusion configuration: BBB, ABB, ABA

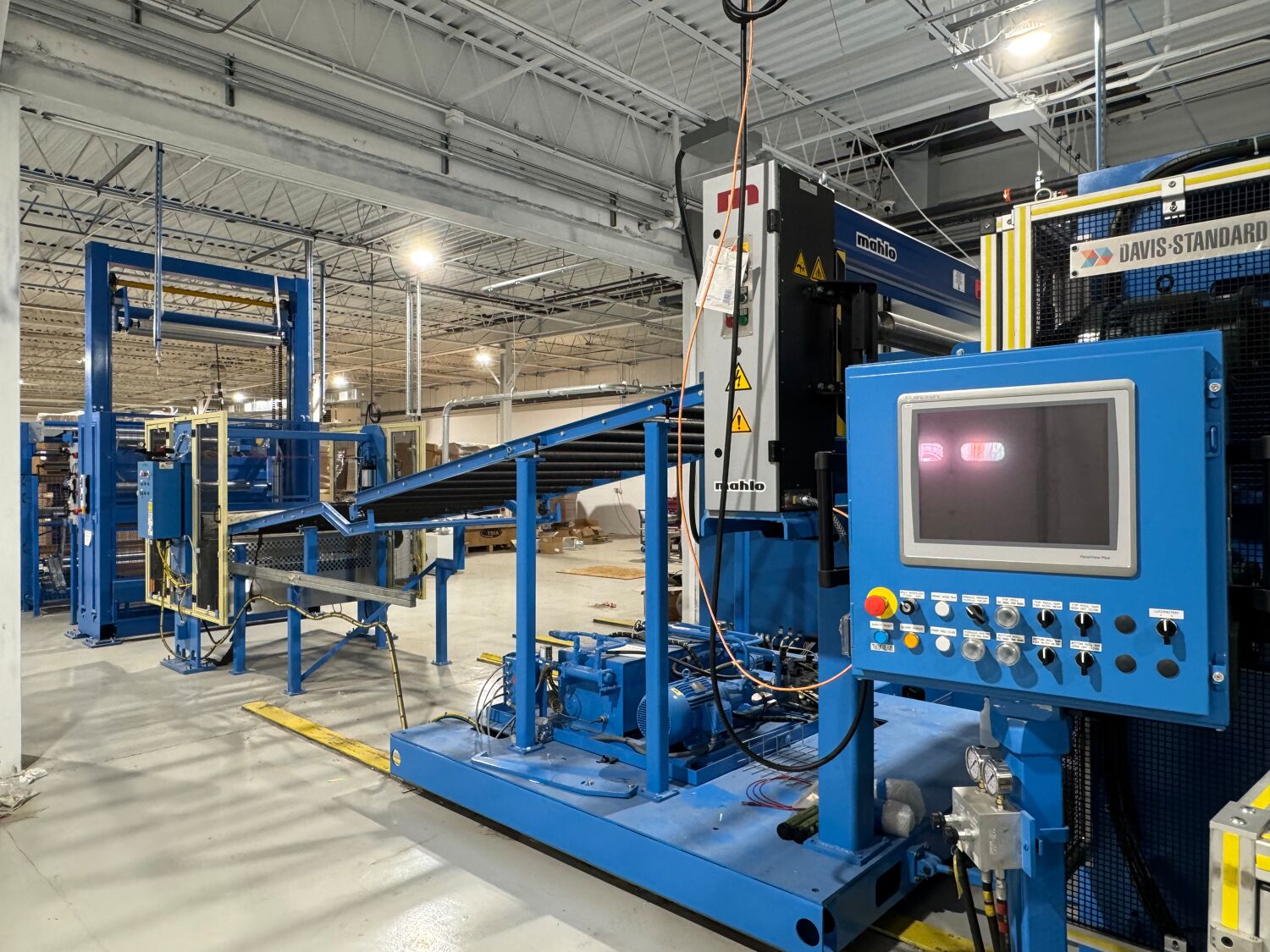

MDO Stretching Line
Two-stage draw and 45" wide
High Torque capability
Independent speed and temperature control
Polyurethane Casting Line
Please contact us for more information

Material Testing Services

Standard Testing Services
One 75-ton electric injection molding machine with various ASTM molds
10kN and 50kN tensile testing machines - both equipped with a temperature chamber
Notched Izod impact tester with a low temperature chamber
Non-Standard testing and Services
Instrumental high speed impact tester
Perkin Elmer DSC and MDA
Taber abrasion tester
Haze meter for haze, clarity, and transmittance
UV-VIS spectroscopy
UV exposure chamber
Two 180-ton injection molding machines for prototyping
Several temperature-humidity chambers and heat aging ovens
Custom-designed free drop tester and punch tester
Well-equipped wet lab
Part design and finite element analysis (FEA)

Superior Material Development Services

We have extensive plastic material development experience and can provide highly innovative technical skills to support our customers through resin formulation development to meet specific needs, compounding process development and end-use process optimization.

In addition to conventional compounded materials, FPP can help our customer with specific application needs, including:

Super high impact resistance or extreme low temperature impact resistance
Super high heat aging resistance
Low frictional requirements and/or superior abrasion resistance
Super high strength and stiffness with glass fiber up to 65% and still retaining excellent mold flow capability
Improved barrier properties such as moisture, oxygen, etc.
Various glass and mineral filters
Improved MDO film stretching characteristics
Improved creep and fatigue resistance
Optimizing resin characteristics for improving plastic sheet co-extrusion
Improved mold flow for thin wall applications
Halogenated or halogen-free flame retarded resins
Improved molding cycle time
Improved mold release and surface finishes

FPP also has three injection molding machines and a fully equipped testing lab to meet our customers material development and testing needs. FPP's team will work very closely with our customers to execute the project in a timely manner.

Please contact us to discuss how we can assist you with your material needs

27mm Twin-Screw Compounding Line For Plastic resins and Composites

The Compounding Line Is Equipped with Four feeder and A High Temperature dryer
